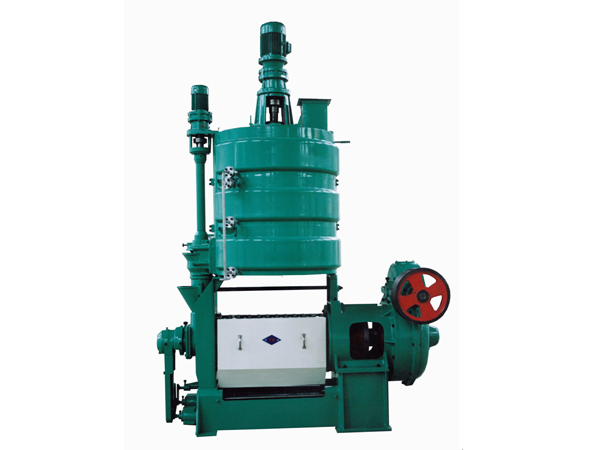

Flaxseed oil press machine
Flaxseed oil is rich in α - linolenic acid nutrients that can be converted into EPA (blood vessel scavenger) and DHA (brain gold) in vivo. It is recommended by nutrition, medicine and major health care experts, and gradually known and consumed by more and more people in the world.
Press principle of flaxseed oil press
Flaxseed oil press machine
Flaxseed oil is rich in α - linolenic acid nutrients that can be converted into EPA (blood vessel scavenger) and DHA (brain gold) in vivo. It is recommended by nutrition, medicine and major health care experts, and gradually known and consumed by more and more people in the world.
Press principle of flaxseed oil press
During the operation of the oil press, the old method is adopted. When the oil press is running, the flax seeds enter the press chamber from the hopper, and the oil is continuously pushed in by the rotation of the press rod to squeeze out the oil. The principle is that, because the oil is in motion in the press chamber, under the condition of high pressure in the press chamber, there will be a great friction resistance between the oil and the press rod and the press chamber, so that there will be friction between the oil micro materials, resulting in relative movement, so that the heat generated by the friction plus the temperature control system adopted by the press chamber device meets the requirements of the press process operation The necessary heat reduces the viscosity of the oil and makes it easy to squeeze out the oil. It also improves the oil output rate of the oil, so that the oil molecules in the oil are squeezed out one by one and flow out from the oil outlet of the strip discharge gap.
In addition, the most important point of the linseed oil press is to adopt the German molecular temperature control technology. The oil temperature is less than 45 ° and the continuous low-temperature cold press is the equipment with the lowest temperature in the industry, which avoids the damage of high temperature to the active molecules, maximizes the linseed oil extracted by the linseed oil press, retains the α - linolenic acid in it, and applies the intelligent speed regulating motor, According to the particle size of flaxseed, the oil yield is higher and the temperature is lower.
Some basic points to be paid attention to in the operation of linseed oil press
First pour flaxseed into the machine, then select the program and start the machine. The feed port is equipped with photoelectric induction device, and the machine will not start if the raw material is not put into operation;
2. Please do not use the machine under strong light, which will interfere with the photoelectric induction of the machine, resulting in misjudgment of the machine; 3. Please do not force the machine to shut down manually after the machine is started, all programs will have reverse action before the end, and forced shutdown will make it difficult to dismantle the squeezing rod of the squeezing chamber. In case of unexpected power failure or forced shutdown, press and hold the "start" key, release it after hearing the "drip" sound, and the machine will enter the reverse procedure, and can be easily disassembled after shutdown.
parameter
Model: YY 60-200
Output 5 tons / day - 50 tons / day
Power 11kw-55kw
Flaxseed oil press machine
